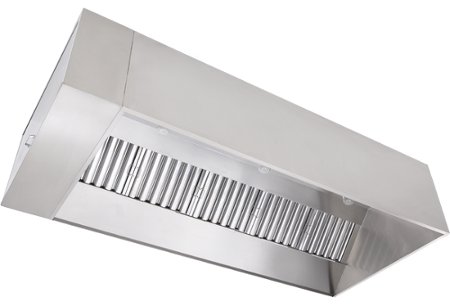

Fully Integrated Self Cleaning System

The Fully Integrated Self Cleaning System efficiently meets the needs of most cooking applications. The system is available with Hot Water Wash integrated into the FloAire premier canopy style FX-2 hood line. These systems are programmable to meet the needs of any application.

The Hot Water Wash system automatically cleans the hood plenum after the days cooking is completed. By washing the plenum while the hood is hot, wash and cleaning effectiveness increases. When combined with a riser sprayer, grease duct and hood cleaning frequency is drastically reduced.

The Cold Water Mist system automatically cools exhaust gasses and aids in the removal of grease vapor. Grease vapor is the largest contributor of grease in ductwork. Most baffle filters allow grease vapor to pass through unhindered.

The Cold Water Mist with Hot Water Wash system combines the best of both systems. This both cools the exhaust gasses and washes the plenum afterward. This cools the exhaust vapors and washes the plenum allowing for grease extraction efficiency and fewer duct cleanings.


   Features and Benefits
  • ETL and ETL Sanitation Listed Product.
  • Fully automatic operation.
  • Hood fabricated from 100% Stainless Steel.
  • Drip-less nozzles with internal strainer.
  • Easily serviceable.
  • Adjustable detergent injection timing and volume. (factory set for 1 second injection with 1 minute delay)
  • Adjustable wash length. (factory set at 3 minutes)
  • 3/4" NPT Pipe Water Inlet connection.
  • 1 1/2" NPT Pipe Water Drain connection.
  • Standard riser spray nozzle for duct cleaning.
  • Available EMS control package to reduce fan loads during idle periods.
  • Water usage is 0.70 GPM per foot of hood.
  • Replacement parts and detergent available from the FloAire catalog.
  • Utility cabinet required.

   Models Available
  • W1 = Hot Water Wash
  • W2 = Cold Water Mist
  • W3 = Cold Water Mist and Hot Water Wash
  • W1REMOTE = Adds additional manifold if needed for Hot Water Wash
  • W2REMOTE = Adds additional manifold if needed for Cold Water Mist
  • W3REMOTE = Adds additional manifold if needed for Hot Water Wash and Cold Water Mist

   Additional Information

   Certifications
The FX-2, SFX-2 and FX-CSND-2 Models have been certified by ITS. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. and Canadian products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance. Models are ETL listed under file number 3054804-001.
