DR-H

CENTRIFUGAL DOWNBLAST FANS - DIRECT DRIVE


Customize and Buy

Show All Sizes

Parts

  • Air Volume: 1 – 25,000 cfm
  • Maximum SP: 4" wg. @ standard air density


Print

Centrifugal Direct Drive Fans are designed to pull more air under higher static pressures. The efficient, balanced wheel and air inlet design contribute to maintaining low noise levels and extended motor life. These fans are especially suited for installation in hospitals, schools, motels and hotels, auditoriums, office buildings and light industrial areas.


   FEATURES & BENEFITS


Spun aluminum housing for rust-free, weather resistant durability.
Standard bird screen.
Non overloading backward inclined wheels, blades and inlets fabricated from aluminum.
Some sizes can be wall mounted.
Wire conduit to provide a clear channel for electrical connections.
Safety Disconnect.
Variable speed control.



   OPTIONS


Gravity Damper.
Motorized Damper.
Wall Mount Sleeve.
Roof Curb.



   ADDITIONAL IMAGES

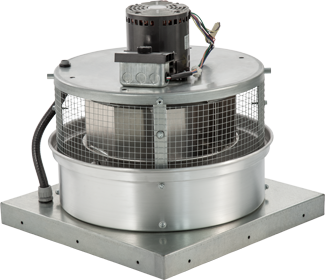

Centrifugal Downblast Fan - Open View



   DRAWINGS





   OPERATION & INSTALLATION MANUALS





   ADDITIONAL INFORMATION





   WRITTEN SPECIFICATIONS





   CERTIFICATIONS



FloAire certifies that Model DR10H thru DR360H shown herein are licensed to bear the AMCA seal. The ratings shown are based on tests & procedures in accordance with AMCA Publication 211 and Publication 311, and comply with the requirements of the AMCA Certified Rating Program.

Models DR10H thru DR360H are ETL Listed under file number 102628244PRT-001 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113.

Catalog #113F
April 2021
