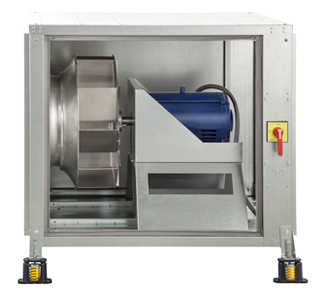

• Inline Duct Fan

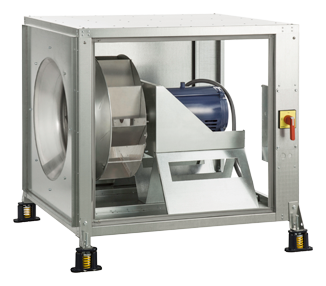

  • Inline Duct Fan
  • Inline Duct Fan

Direct Drive Inline Fan(FSIFDD)

  • Air Volume: 1 – 32,000 cfm
  • Maximum SP: 5" wg. at standard air density

  • Two full size access doors provide easy access to the wheel and motor
  • Wheels are backward inclined, non-overloading
  • Speed Control allows for field adjustment and system balancing
  • Thermal overload protection (single phase)
  • Electronically Commutated Motor (single phase)
  • Fan Speed Control for ECM manual control or 0-10V control
  • Aluminum wheels
  • Housing is galvanized steel construction or stainless steel construction (-SS Models)
  • Disconnect Switch Standard
  • Side discharge options
  • Units can be installed at a 90 degree rotation
  • Unit can be installed horizontally & vertically
  • Mounting Brackets Standard
  • 2" NPT threaded drain included with sizes 11-36 Stainless Steel Versions, 1" NPT threaded drain used on sizes 9-10

  • Floor Vibration Isolators
  • Ceiling Vibration Isolators
  • Back Draft Dampers
  • Motorized Back Draft Dampers
  • Discharge Screen
  • Square Duct Inline Connectors
  • Inlet Rings For Round Duct
  • Side Discharge Left
  • Side Discharge Right
  • Low Pressure Square to Round Discharge Adapter

UL Listed UL Listed

FloAire certifies that Models FSIF11DD thru FSIF36DD are licensed to bear the AMCA seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and 311 and comply with the requirements of the AMCA Certified Rating Program.

Models FSIF11DD thru FSIF36DD have been certified by ITS. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance.

Models FSIF11DD thru FSIF36DD are ETL Listed under report number 3100959CRT and comply with UL705 and CSA C22.2, No. 113 Standards.

Models FSIF11DD thru FSIF36DD with Stainless Steel Construction are ETL Listed under report number 103336443COL-001 and comply with UL705 and CSA22.2, No. 113 and ULC S645 Standards.

Catalog #110F

May 2021

  • FSIF9DD Direct Drive Square Inline Fan with 9" Centrifugal Wheel.
  • FSIF9DD-SS Direct Drive Square Inline Fan - Stainless Steel with 9" Centrifugal Wheel.
  • FSIF10DD Direct Drive Square Inline Fan with 10" Centrifugal Wheel.
  • FSIF10DD-SS Direct Drive Square Inline Fan - Stainless Steel with 10" Centrifugal Wheel.
  • FSIF11DD Direct Drive Square Inline Fan with 11.75" Centrifugal Wheel.
  • FSIF11DD-HE Direct Drive Square Inline Fan with 11.75" High Efficiency Mixed Flow Wheel.
  • FSIF11DD-SS Direct Drive Square Inline Fan - Stainless Steel with 11.75" Centrifugal Wheel.
  • FSIF13DD Direct Drive Square Inline Fan with 13.75" Centrifugal Wheel.
  • FSIF13DD-HE Direct Drive Square Inline Fan with 13.75" High Efficiency Mixed Flow Wheel.
  • FSIF13DD-SS Direct Drive Square Inline Fan - Stainless Steel with 13.75" Centrifugal Wheel.
  • FSIF15DD Direct Drive Square Inline Fan with 15.75" Centrifugal Wheel.
  • FSIF15DD-HE Direct Drive Square Inline Fan with 15.75" High Efficiency Mixed Flow Wheel.
  • FSIF15DD-SS Direct Drive Square Inline Fan - Stainless Steel with 15.75" Centrifugal Wheel.
  • FSIF18DD Direct Drive Square Inline Fan with 18.75" Centrifugal Wheel.
  • FSIF18DD-HE Direct Drive Square Inline Fan with 18.75" High Efficiency Mixed Flow Wheel.
  • FSIF20DD Direct Drive Square Inline Fan with 20.75" Centrifugal Wheel.
  • FSIF20DD-HE Direct Drive Square Inline Fan with 20.75" High Efficiency Mixed Flow Wheel.
  • FSIF24DD Direct Drive Square Inline Fan with 24.75" Centrifugal Wheel.
  • FSIF24DD-HE Direct Drive Square Inline Fan with 24.75" High Efficiency Mixed Flow Wheel.
  • FSIF30DD Direct Drive Square Inline Fan with 30.875" Centrifugal Wheel.
  • FSIF30DD-HE Direct Drive Square Inline Fan with 30.875" High Efficiency Mixed Flow Wheel.
  • FSIF36DD Direct Drive Square Inline Fan with 37.25" Centrifugal Wheel.
  • FSIF36DD-HE Direct Drive Square Inline Fan with 37.25" High Efficiency Mixed Flow Wheel.
