FX-NDI Series

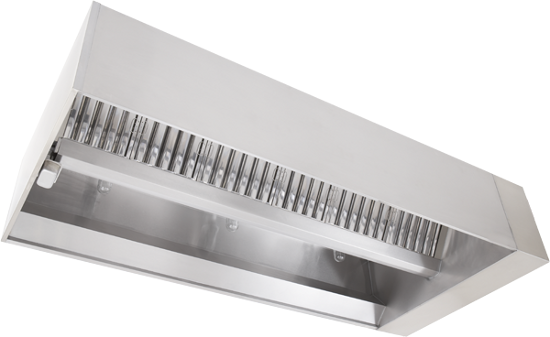

Exhaust Only Island Hood

Low exhaust flow rates make for superior efficiency! Use this Type I hood to meet the challenges of any island style cooking application.

  • One piece V-Bank island hood.
  • Fabricated of Type 430 stainless steel, #3 or #4 polish, on all exposed surfaces. Optional type 304 stainless steel available.
  • Double-wall, insulated front increases rigidity.
  • Front design prohibits condensation and directs grease-laden vapors toward the exhaust filter bank. Polished stainless steel on the interior and exterior of the front enhance aesthetics.
  • Fitted with UL Classified, stainless steel baffle filters, removable for cleaning. Optional Captrate Combo®, Captrate Solo®, high efficiency stainless steel baffle, aluminum baffle and high velocity cartridge filters (Model FX-CNDI) are available.
  • Sloped grease drain system with removable 1/2 pint cup for easy cleaning.
  • Pre-punched hanging angles on each end of hood. Additional set provided for hoods longer than 12'.
  • Fitted with UL Listed, pre-wired, incandescent light fixtures and tempered glass globes to hold up to a standard 100 watt bulb.
  • A built-in wiring chase provided for optimal positioning of electrical controls and outlets on the front face of the hood without penetrating capture area or requiring external chaseway.
  • Optional integral 3" air space to meet NFPA 96 requirements when the hood is against a limited combustible wall. Optional insulated 3" air space for combustible walls.
  • Optional ETL Listed exhaust fire damper (Model FX-NDI-100).
  • Model FX-NDI is ETL Listed for 400°F, 600°F and 700°F cooking surfaces (File 102900319PRT-001 without exhaust damper; File 3054804-002 with exhaust damper), ETL Sanitation Listed and built in accordance with NFPA Standard 96.

ETL Listed

The FX-NDI Model has been certified by ITS. This certification mark indicates that the product has been tested to and has met the minimum requirements of a widely recognized (consensus) U.S. and Canadian products safety standard, that the manufacturing site has been audited, and that the applicant has agreed to a program of periodic factory follow-up inspections to verify continued performance.

Models FX-NDI are ETL Listed under file number 102900319PRT-001 and complies with UL710, ULC710 and ULC-S646 Standards.

  • Utility Cabinet
    ETL Listed for integral top mount on the FloAire Systems ventilation hood...fabricated of same material as hood...the cabinet can house factory pre-piped UL Listed fire suppression system* and ETL Listed, pre-wired electrical controls...pre-wire package* contains light switches, lighted fan control switches and internal factory wiring and components (starters, relays, etc.) to reduce field wiring requirements. ETL tests confirm temperatures do not exceed 120°F inside the cabinet during fire condition. (120°F is the maximum allowed storage temperature for the UL Listed fire suppression system and the ETL Listed Industrial control panel.
    *Dimensional restrictions may apply
  • Removable ETL Listed High-velocity Cartridge Filter
    Constructed of stainless steel...uses centrifugal force to remove grease and other particulates...National Institute of Standards and Technology methodology used by an independent agency to evaluate performance...tests indicated 95 percent extraction efficiency.
  • Enclosure Panels
    Constructed of stainless steel...mounting channel factory-welded to hood for field installation of panels over 11" high...under 11", factory-welded and integrally installed into hood front and ends...sized to extend from hood top to ceiling, enclosing pipe and hanging parts.
  • Roof Top Package
    Combination ETL Listed exhaust/supply air unit with factory prewired and mounted motors, trunkline and curb vented on exhaust side. Various models perform up to 14,000 CFM exhaust and up to 3 inches static pressure...weatherproofed...galvanized construction... washable mesh filters...exhaust/supply air fans share common roof penetration...internal wiring drops directly through curb, requiring no pitch pockets...exhaust outlets/air intakes spaced to conform to code regulations...automatic reset/thermal overload protection on all single phase motors and on three phase motors if pre-wire assembly is included in package...standard single-point power connections...UL 705, 762 Listed exhaust fans rated for high grease applications...optional backdraft dampers.
  • Separate Fans
    ETL Listed single exhaust fans and supply-air fans and curbs available...same features, construction methods and performance ratings as roof top package above.
  • Heated Make-up air
    ETL Listed single exhaust fans and supply-air fans and curbs available...same features, construction methods and performance ratings as roof top package above.
  • Lighting
    • Recessed Incandescent
    • Recessed Flourescent
    • Compact Fluorescent
    • Halogen

Avg. Cooking Surface Temp (°F) Min. Exhaust CFM/ft.
400°F 346
600°F 422
700°F 475

Recommended Duct Sizing:

  • Exhaust: Based on 1500 FPM
