MODULAR ROOFTOP FILTERED MAKE-UP AIR FANS (SA)

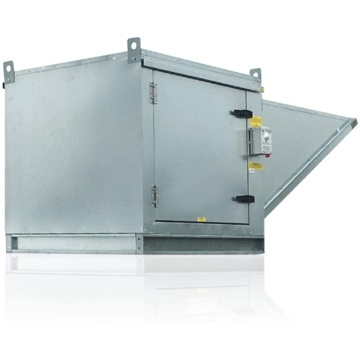

The Air Handler Unit is the heart of the modular fan system. It is designed to deliver fresh outside make up air for installations requiring frequent air changes. Units are designed for indoor or outdoor applications, and are available in vertical or horizontal discharge configurations.

Packages are available in sizes up to 22,000 CFM, and external static pressures up to 4" W.G. Units have large doors on both sides to provide ample access to all internal components. Standard features include vibration isolation, high efficiency motors, and adjustable drive sheaves (belt drive units only). Units consist of a galvanized enclosure with a blower and motor. Belt drive units also include pulleys and belt(s). The blower module has a standard horizontal inlet designed to accommodate an outside air inlet hood with a standard 2" filters and screen.

To satisfy a variety of installation and climatic requirements, packages are available in a number of configurations. Possible configurations include the addition of either a v-bank or an evaporative cooler intake module and a direct fired or indirect fired heating module. All modules bolt together to form a rigid common base structure that mount onto a single curb structure or can be hung for indoor applications.

Combination packages that include both exhaust and supply fans mounted on a single roof curb are also available, please contact your sales representative for more information.

  • Air Volume: 2 – 22,000 cfm
  • Maximum SP: 4" wg. at standard air density

  • Vibration isolation.
  • High efficiency motors.
  • Compact weatherproof design.
  • Adjustable drive sheaves. (belt drive units only)
  • Horizontal or down discharge.
  • 2" washable filters.
  • Inlet screen.
  • G90 galvanized steel.
  • Easy accessibility to all components for inspection, maintenance and cleaning.
  • Disconnect switch.
  • Lifting points.
  • Speed control standard on direct drive units.

  • Gravity intake damper.
  • Motorized intake damper.
  • Roof Curbs.
  • Wall Mount Kit.
  • Mixing Box with Damper Control.
  • DX Cooling Coils.
  • Hot Water/Steam Coils.
  • Indoor Hanging Cradle.
  • Insulated Housing.
  • Evaporative Cooler Intake.
  • VAV Packages.
  • Extra Set of V-Belts. (belt drive units only)

  • SA10Untempered Supply Unit with 10" Blower in Size #1 Housing
  • SA10DDirect Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
  • SA15DUntempered Supply Unit with 15" Mixed Flow Direct Drive Fan in Size #1 Housing
  • SA16ZUntempered Supply Unit with 16" Direct Drive Fan in Size #1 Housing
  • SA18ZUntempered Supply Unit with 18" Direct Drive Fan in Size #1 Housing
  • SA12Untempered Supply Unit with 12" Blower in Size #2 Housing
  • SA15Untempered Supply Unit with 15" Blower in Size #2 Housing
  • SA20DUntempered Supply Unit with 20" Mixed Flow Direct Drive Fan in Size #2 Housing
  • SA20ZUntempered Supply Unit with 20" Direct Drive Fan in Size #2 Housing
  • SA22ZUntempered Supply Unit with 22" Direct Drive Fan in Size #2 Housing
  • SA18Untempered Supply Unit with 18" Blower in Size #3 Housing
  • SA24DUntempered Supply Unit with 24" Mixed Flow Direct Drive Fan in Size #3 Housing
  • SA25ZUntempered Supply Unit with 25" Direct Drive Fan in Size #3 Housing
  • SA920Untempered Supply Unit with 20" Blower in Size #4 Housing
  • SA28ZUntempered Supply Unit with 28" Direct Drive Fan in Size #4 Housing
  • SA30DUntempered Supply Unit with 30" Mixed Flow Direct Drive Fan in Size #4 Housing
  • SA925Untempered Supply Unit with 25" Blower in Size #5 Housing
  • SA36DUntempered Supply Unit with 36" Mixed Flow Direct Drive Fan in Size #5 Housing
