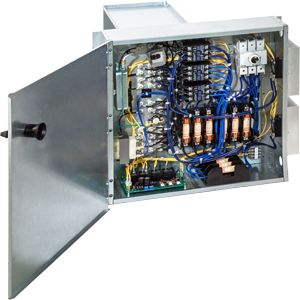

Modulating Electric Coil

Electric Heat Coils are used in modular housings or in ductwork applications. Electric heat coils are used for tempering make-up air for installations requiring frequent air changes. The units are rated up to 257KW with voltages and phases to meet all electrical requirements. Air volume range is 400 - 22,000 CFM and up to 3" wg at standard air density, depending on the heating requirements. The heaters are intended for indoor or outdoor installations in commercial kitchens, factories, foundries and similar commercial and industrial occupancies.

  • SCR with modulating control.
  • Redundant safety controls.
  • Airflow proving switch.
  • Temperature control system.
  • High temperature limit.

  • EMC1-10KW2401Electric Duct Insert for Size 1 Enclosure. 240V 1 phase, 10 KW maximum - 1 modulating stage, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-20KW2401Electric Duct Insert for Size 1 Enclosure. 240V 1 phase, 20 KW maximum - 2 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-20KW2403Electric Duct Insert for Size 1 Enclosure. 240V 3 phase, 20 KW maximum - 2 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-20KW4803Electric Duct Insert for Size 1 Enclosure. 480V 3 phase, 20 KW maximum - 1 modulating stage, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-35KW2403Electric Duct Insert for Size 1 Enclosure. 240V 3 phase, 35 KW maximum - 5 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-35KW4803Electric Duct Insert for Size 1 Enclosure. 480V 3 phase, 35 KW maximum - 2 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-35KW6003Electric Duct Insert for Size 1 Enclosure. 600V 3 phase, 35 KW maximum - 1 modulating stage, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-36KW2403Electric Duct Insert for Size 1 Enclosure. 240V 3 phase, 36 KW maximum - 3 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-40KW2401Electric Duct Insert for Size 1 Enclosure. 240V 1 phase, 40 KW maximum - 4 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-50KW4803Electric Duct Insert for Size 1 Enclosure. 480V 3 phase, 50 KW maximum - 2 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-72KW4803Electric Duct Insert for Size 1 Enclosure. 480V 3 phase, 72 KW maximum - 2 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC1-76KW6003Electric Duct Insert for Size 1 Enclosure. 600V 3 phase, 76 KW maximum - 2 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 15.50" wide and 17.75" tall.
  • EMC2-100KW4803Electric Duct Insert for Size 2 Enclosure. 480V 3 phase, 100 KW maximum - 4 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 22.63" wide and 23.63" tall.
  • EMC2-119KW6003Electric Duct Insert for Size 2 Enclosure. 600V 3 phase, 119 KW maximum - 3 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 22.63" wide and 23.63" tall.
  • EMC2-45KW2403Electric Duct Insert for Size 2 Enclosure. 240V 3 phase, 45 KW maximum - 3 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 22.63" wide and 23.63" tall.
  • EMC2-73KW4803Electric Duct Insert for Size 2 Enclosure. 480V 3 phase, 73 KW maximum - 3 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 22.63" wide and 23.63" tall.
  • EMC2-73KW6003Electric Duct Insert for Size 2 Enclosure. 600V 3 phase, 73 KW maximum - 2 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 22.63" wide and 23.63" tall.
  • EMC3-122KW4803Electric Duct Insert for Size 3 Enclosure. 480V 3 phase, 122 KW maximum - 3 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 29.50" wide and 29.63" tall.
  • EMC3-122KW6003Electric Duct Insert for Size 3 Enclosure. 600V 3 phase, 122 KW maximum - 3 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 29.50" wide and 29.63" tall.
  • EMC3-143KW4803Electric Duct Insert for Size 3 Enclosure. 480V 3 phase, 143 KW maximum - 4 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 29.50" wide and 29.63" tall.
  • EMC3-175KW6003Electric Duct Insert for Size 3 Enclosure. 600V 3 phase, 175 KW maximum - 4 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 29.50" wide and 29.63" tall.
  • EMC3-52KW2403Electric Duct Insert for Size 3 Enclosure. 240V 3 phase, 52 KW maximum - 3 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 29.50" wide and 29.63" tall.
  • EMC3-64KW2403Electric Duct Insert for Size 3 Enclosure. 240V 3 phase, 64 KW maximum - 3 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 29.50" wide and 29.63" tall.
  • EMC4-168KW4803Electric Duct Insert for Size 4 Enclosure. 480V 3 phase, 168 KW maximum - 4 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 33.50" wide and 35.63" tall.
  • EMC4-168KW6003Electric Duct Insert for Size 4 Enclosure. 600V 3 phase, 168 KW maximum - 4 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 33.50" wide and 35.63" tall.
  • EMC4-97KW2403Electric Duct Insert for Size 4 Enclosure. 240V 3 phase, 97 KW maximum - 4 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 33.50" wide and 35.63" tall.
  • EMC5-151KW2403Electric Duct Insert for Size 5 Enclosure. 240V 3 phase, 151 KW maximum - 7 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 42.50" wide and 42.63" tall.
  • EMC5-257KW4803Electric Duct Insert for Size 5 Enclosure. 480V 3 phase, 257 KW maximum - 6 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 42.50" wide and 42.63" tall.
  • EMC5-257KW6003Electric Duct Insert for Size 5 Enclosure. 600V 3 phase, 257 KW maximum - 5 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 42.50" wide and 42.63" tall.
  • EMC5-334KW4803Electric Duct Insert for Size 5 Enclosure. 480V 3 phase, 334 KW maximum - 6 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 42.50" wide and 42.63" tall.
  • EMC5-415KW6003Electric Duct Insert for Size 5 Enclosure. 600V 3 phase, 415 KW maximum - 7 stages total, 1 modulating, de-energizing contactors, 120V fan interlock relay, air pressure switch, control transformer, disconnect switch, and hinged door. Uses A/CP-DO-120-QC Sensor and VT7225 Thermostat. Sensor and Thermostat not included. Coil is 42.50" wide and 42.63" tall.
